User Interface

To access the Fusion Designer user interface, open the following address in your browser:

http://<host-name>:22000/

Replace <host-name> with the name of your Fusion host.

Notice

The Fusion Designer user interface is optimized for Google Chrome. Use only a recent version of this browser to be able to use the full range of Fusion Designer functions.

The user interface is structured as follows:

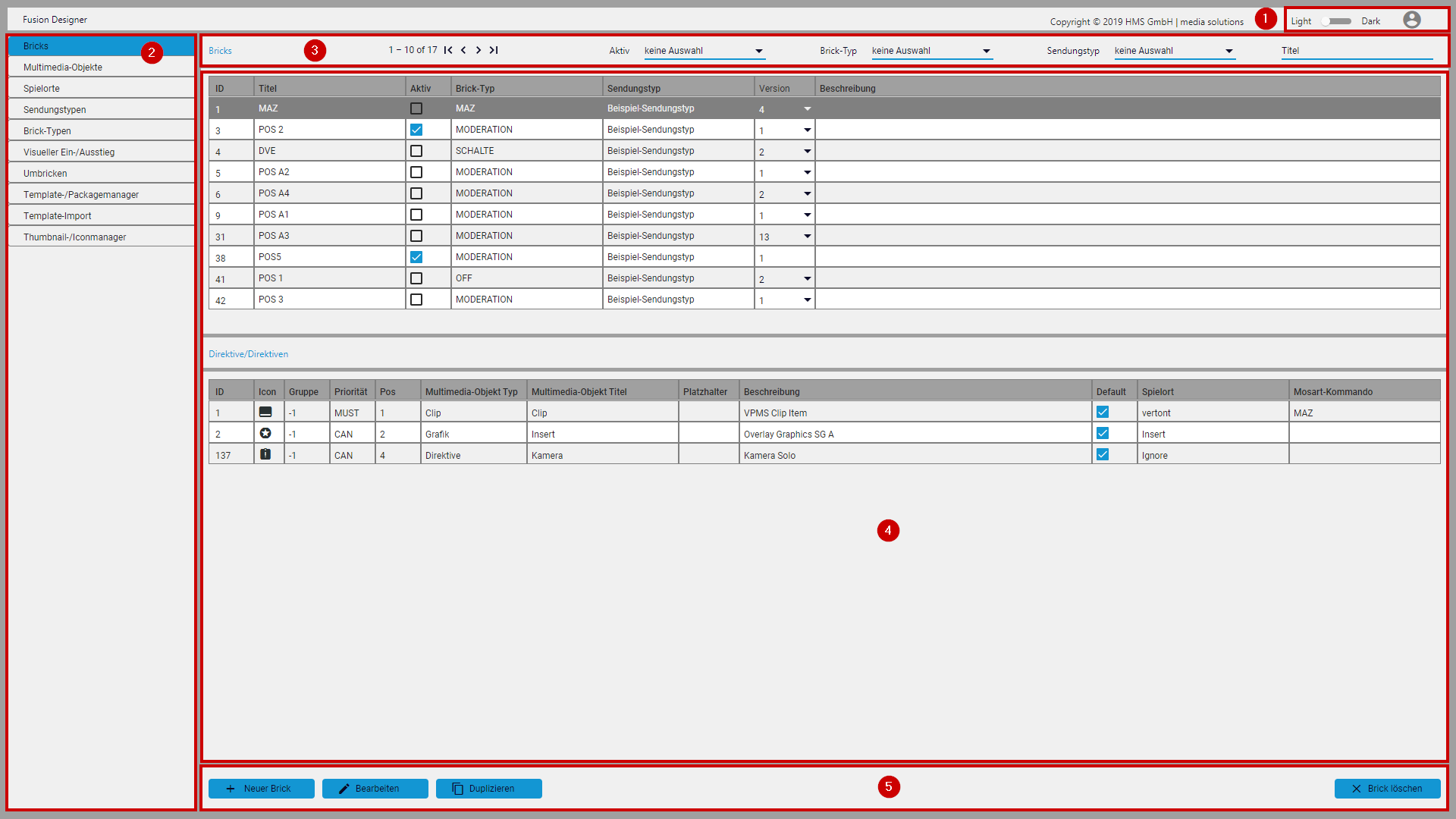

User interface

Figure: User interface

  1. Switch for changing the design theme of the user interface
  2. Navigation to main areas
  3. Filters
  4. Content of the currently selected area
  5. Functions of the currently selected area
